Truck Side Mirror Camera
Get a truck side mirror camera to capture side view surveillance.
Surveillance Cameras For The Side of Commercial Trucks & Vehicles
Ever thought of investing in a truck camera system? Commercial drivers are always at risk of being blamed for accidents that they didn’t cause, and insurance companies are often quick to try and take advantage of this.
It’s hard to know who to trust when it comes to vehicle damage and insurance claims. Drivers can be left feeling helpless when their livelihood is on the line.
skEYEvue was created to help drivers and fleet owners exonerate themselves from illegitimate property damage and insurance claims. Our side view cameras capture video surveillance from each side of a commercial vehicle, so you always have evidence of what really happened in the event of side collision or incident.
Request More Info about Our Truck Cameras
Want to chat with a VSS Vehicle Surveillance System Expert? Fill out the form below to request a call back or to request more info.
Have questions? Let's Talk!
Call us or request a call back today!
Key Features

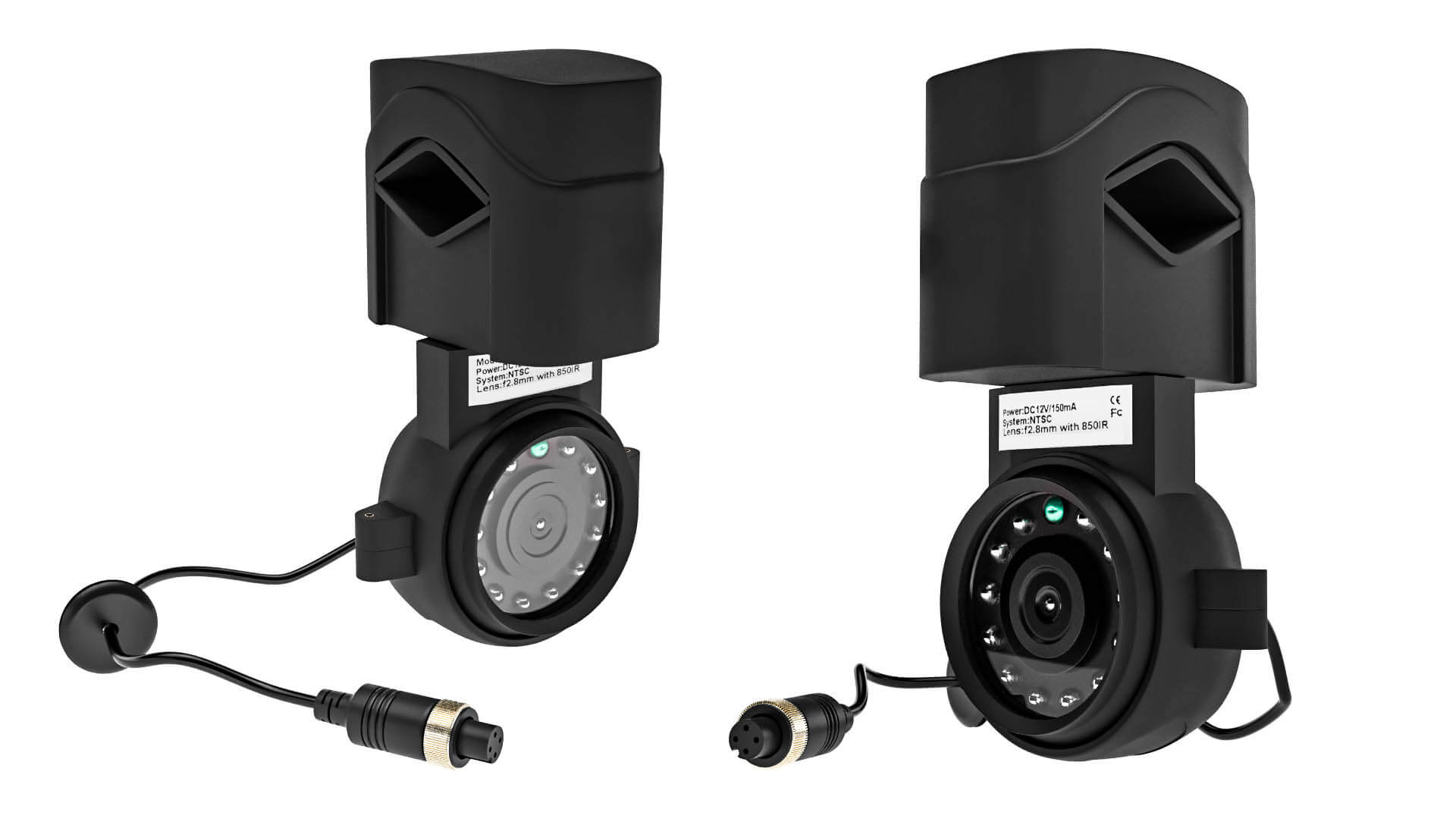

- Side view camera, easy for Pan/tilt adjustment
- 1/2.9" CMOS
- High Resolution: 2MP (1080P)
- Minimum Illumination: 0.1Lux at F1.2, OLux RI ON,
- 3.6mm fixed Lens (2.8mm lens for option
- HLC (Highlight Compensation)

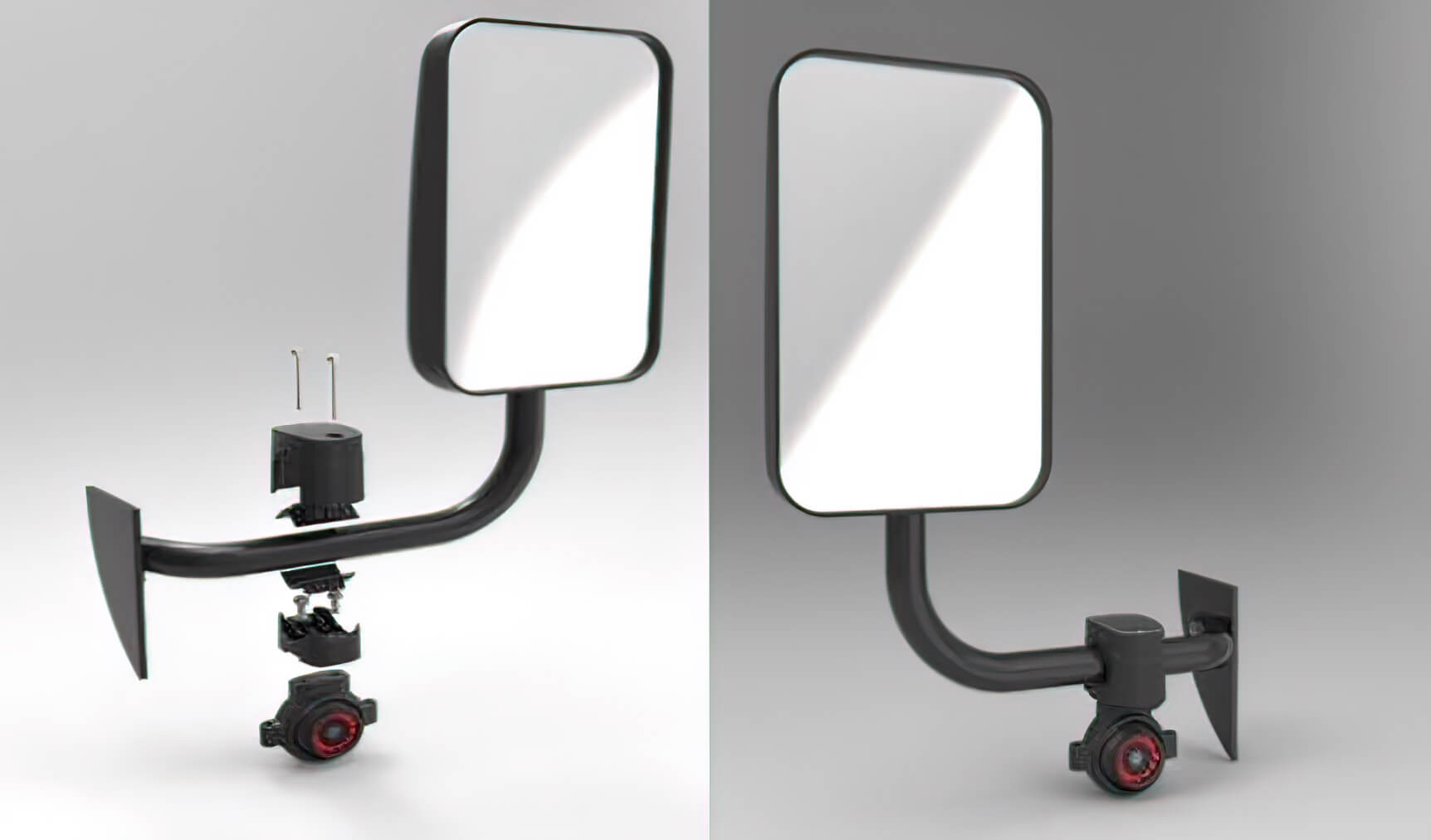

- Convenient tubular mount option (bracket sold separately)
Truck Side View Camera | Model: SK-V362MR2 | |
---|---|
Sensor | 1/2.9" CMOS sensor |
Signal Format | PAL/NTSC |
Picture Elements | 1920(H)x1080(V) |
Horizontal Resolution | 2000TVL (1080P/2 Megapixels) |
Lens | Megapixel 3.6mm Fixed Iris Lens(2.8mm lens for option) |
Viewing angle | 3.6mm: 90 degree, 2.8mm: 110degree |
Lens Mount | M12xP0.5mm Thread |
Exterior Focus Adjustment | N/A |
Synchronization | Internal sync. |
S/N Ratio | >44dB(AGC off) |
Auto Gain Control | Auto |
White Balance | Auto |
Electronic Shutter | AUTO 1/50 (1/60) - 1/100,000sec |
Back Light Compensation | Auto |
Mirror | No mirror image by default |
Gamma Ratio | 0.45 |
Day & Night | Auto |
Auto-iris Lens Control | N/A |
Infrared LED | 12 LEDs |
Infrared Spectrum | 850m |
Infrared LED Range | 8m |
Sensitivity | 0 Lux(Infrared LED On,at F1.2) |
Video Output | AHD video, 4PIN Aviation female connector |
Audio | N/A |
Pan Adjusting | Available |
Tilt Adjusting | Available |
Power Supply | 12V DC ‡10% |
Power Consumption | 150mA ‡10% |
Dimensions(L xWxH) | 78.5 x 63 ×48.5 mm |
Net Weight | 123g |
Protect Level | IP67/IP68 |
Operating Temperature | --20°C to +70°C |
Storage Temperature | -40°C to +80°C |
Humidity | ≤85%RH |
FAQs
FAQs About Truck Side Mirror Cameras
Common answers to common questions about our truck side mirror cameras.
What are truck side mirror cameras?

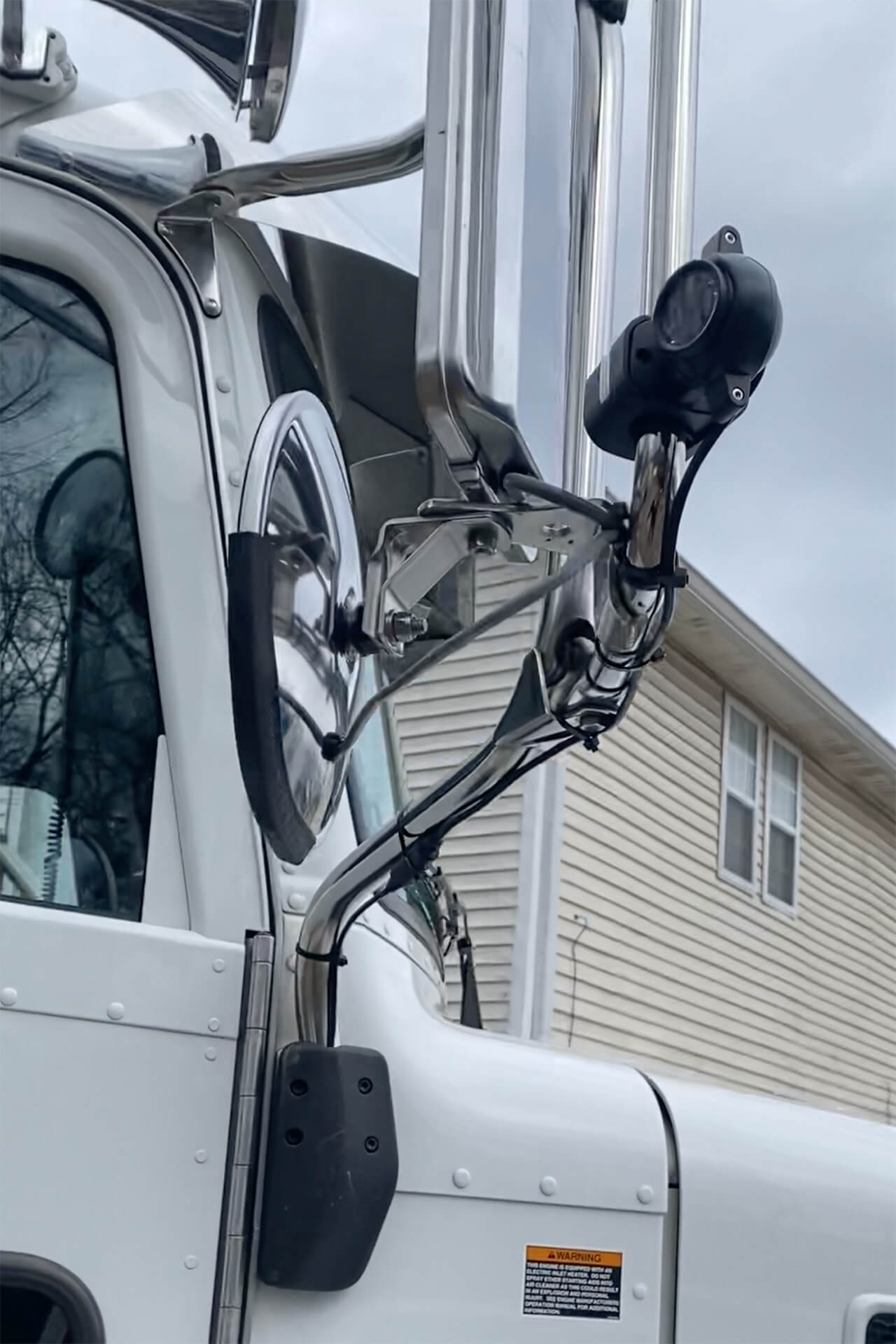

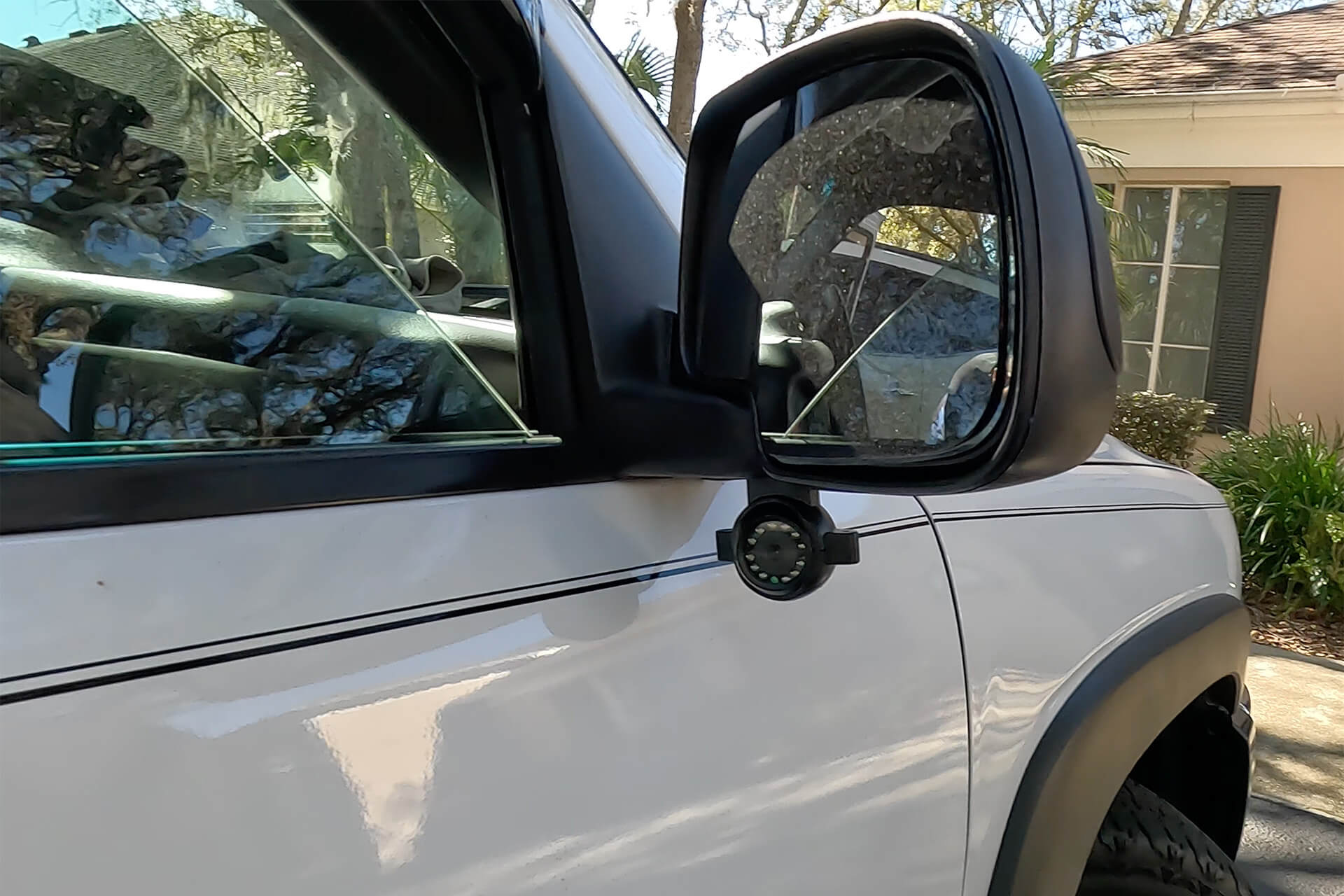

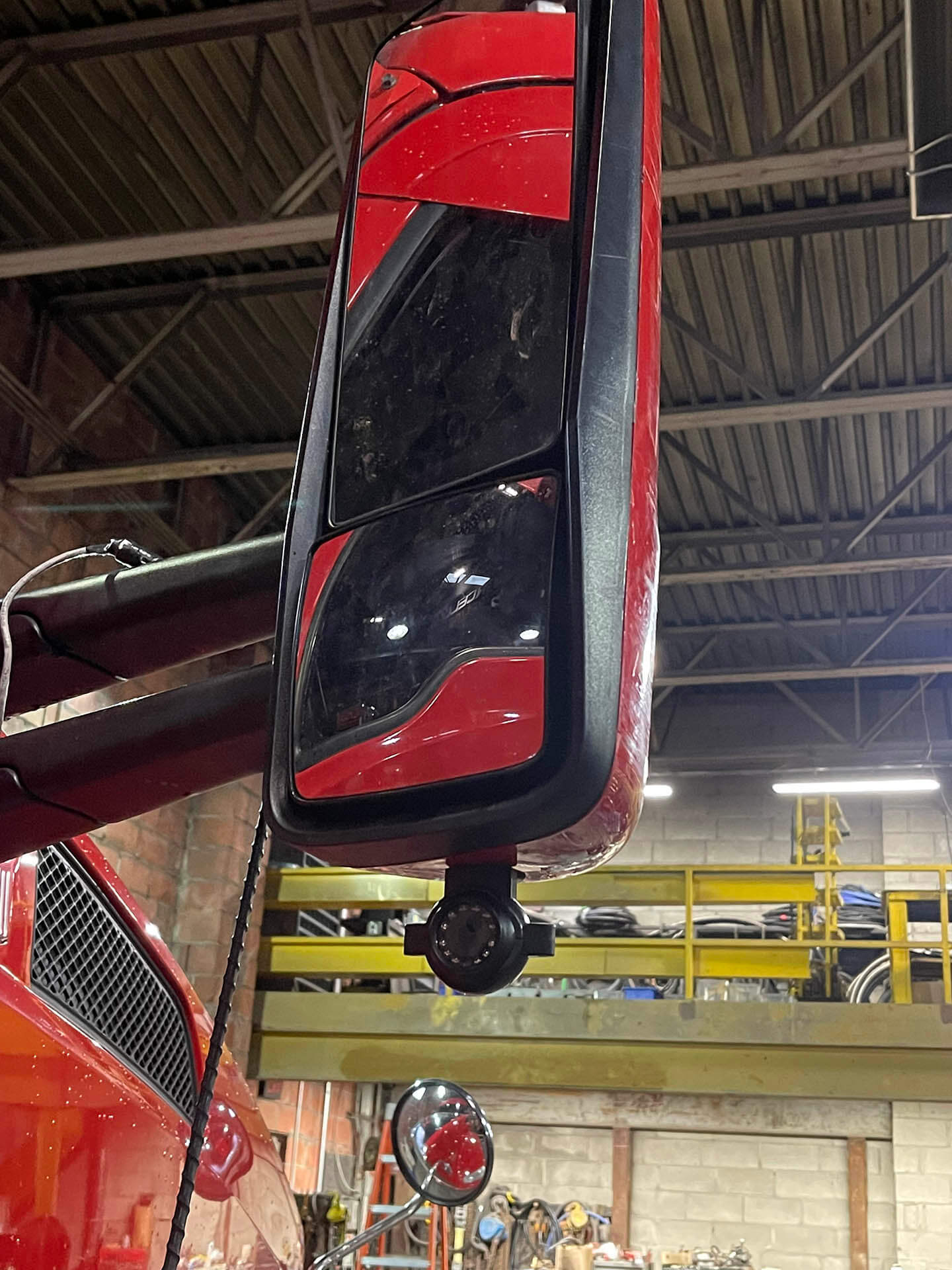

Truck side mirror cameras are side mirrors with aftermarket cameras attached them. They are designed to be bolted to commercial truck's side mirrors in order to provide surveillance on each side of the vehicle. This helps to protect drivers from fraudulent and illegitimate claims as they have evidence of any incidents that occur.
How do these truck side cameras work?
The cameras are triggered when the truck’s ignition is turned on, at which point it begins recording directly onto the truck's mobile DVR (mDVR). The cameras continue to record for up to 24 hours after the ignition is switched off.
Are these cameras weatherproof?
Yes, these cameras are designed to be resistant to rain, snow and other environmental factors so that you can use them even in harsher conditions. These side mirror cameras hold IP67 weather rating.
Do these camera come with night vision capabilities?
Yes! These cameras are equipped with 12 infrared LEDs that allow for clear video at night or during low light scenarios.
What kind of storage do these camera use?
These cameras do NOT have built in storage. They are to be plugged into a mobile DVR which can vary in storage size.
Can I access my recordings remotely?
Yes, skEYEvue customers have secure access through a mobile app for Google Play and iOS that allows you to view your footage in real-time or retrospectively while away from your vehicle.
