IP69K Truck Camera (JA26)
Your Fleet’s Toughest Camera Yet
The Xman II – The IP69K truck camera that can handle more pressure than your Monday mornings!
Give Us a Call:
The All-Purpose Vehicle Camera for Tough Environments
Built to Handle the Toughest Conditions
Whether you’re managing concrete trucks that require high-pressure washouts between loads or working in high-heat environments such as asphalt paving, your camera system needs to handle the extremes. Many cameras fail in these environments, leaving you with inadequate visibility or missing footage during critical moments. The SK-JA26 is built to stand up to these challenges, ensuring your operations are both safe and secure.
Unmatched Durability w/ IP69K Rating
The SK-JA26 Heavy Duty Rear Camera is designed to withstand harsh conditions, from high-pressure water to extreme heat. With an IP69K waterproof rating, it easily handles the intense washdowns required for concrete trucks, and its high heat resistance makes it perfect for asphalt paving jobs, where temperatures can reach up to +75°C. This camera is built to provide clear, 1080P footage in even the toughest environments.
Versatile for Any Fleet Need

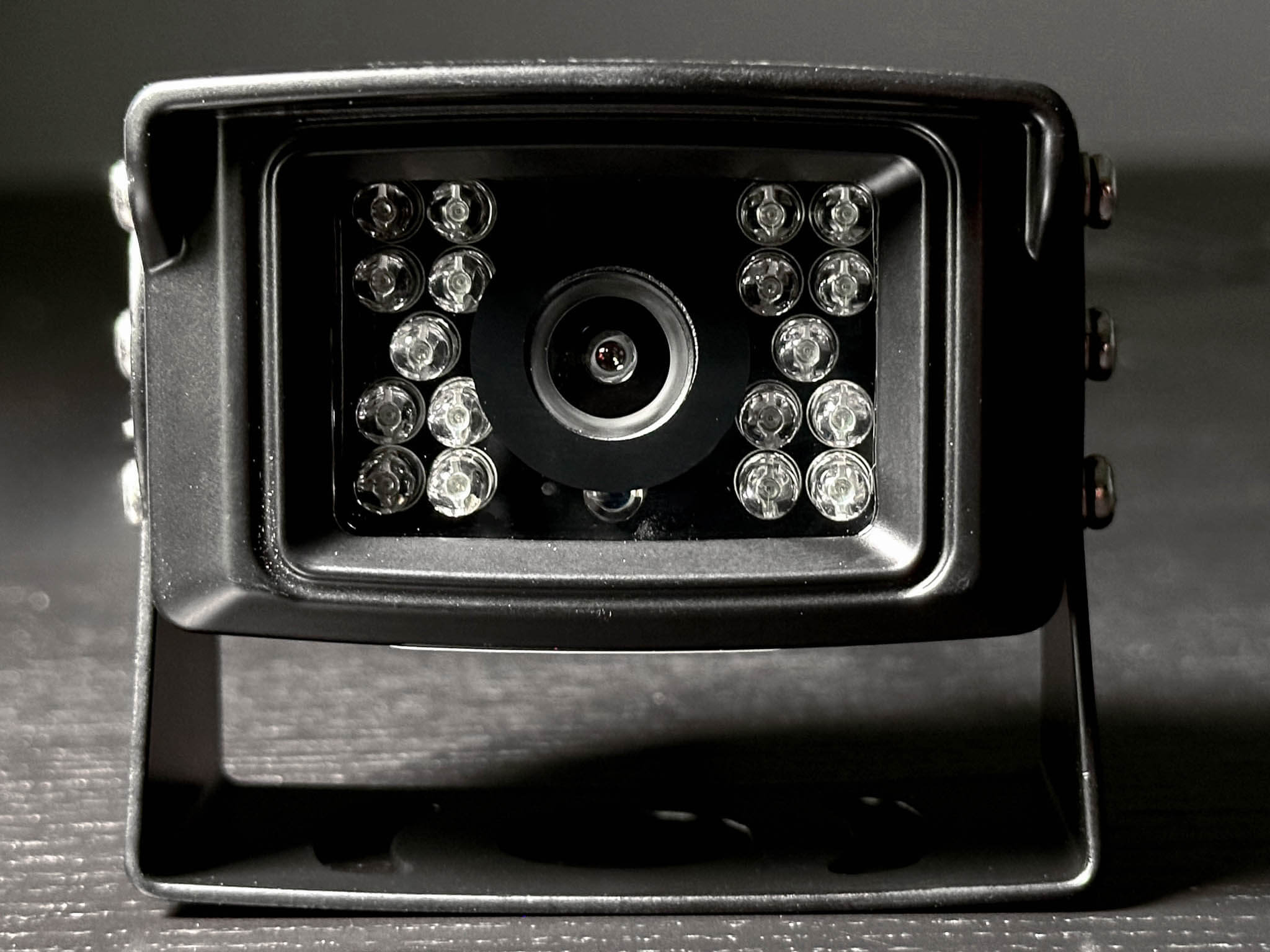

More than just a reverse camera, the SK-JA26 integrates seamlessly into your fleet’s surveillance system. Whether for driver assistance or incident review, it delivers crystal-clear 1080P video. Its 105° wide-angle lens eliminates blind spots, while the 18 infrared LEDs offer superior night vision up to 15 meters. Additionally, the optional microphone captures audio for a more comprehensive monitoring solution.
Designed to Last in Harsh Environments
Built with a durable metal shell and flexible mounting options, the SK-JA26 can be installed almost anywhere on your vehicle—under a bumper, on the roof, or on the sides. No matter where it’s mounted, this camera delivers reliable, long-lasting performance, even in extreme conditions.
Need More Info?
Fill out & Submit the form below, and we’ll provide all the details you need to make an informed choice.
*Your privacy matters to us. Rest assured, your contact information will solely be used for addressing your initial request.

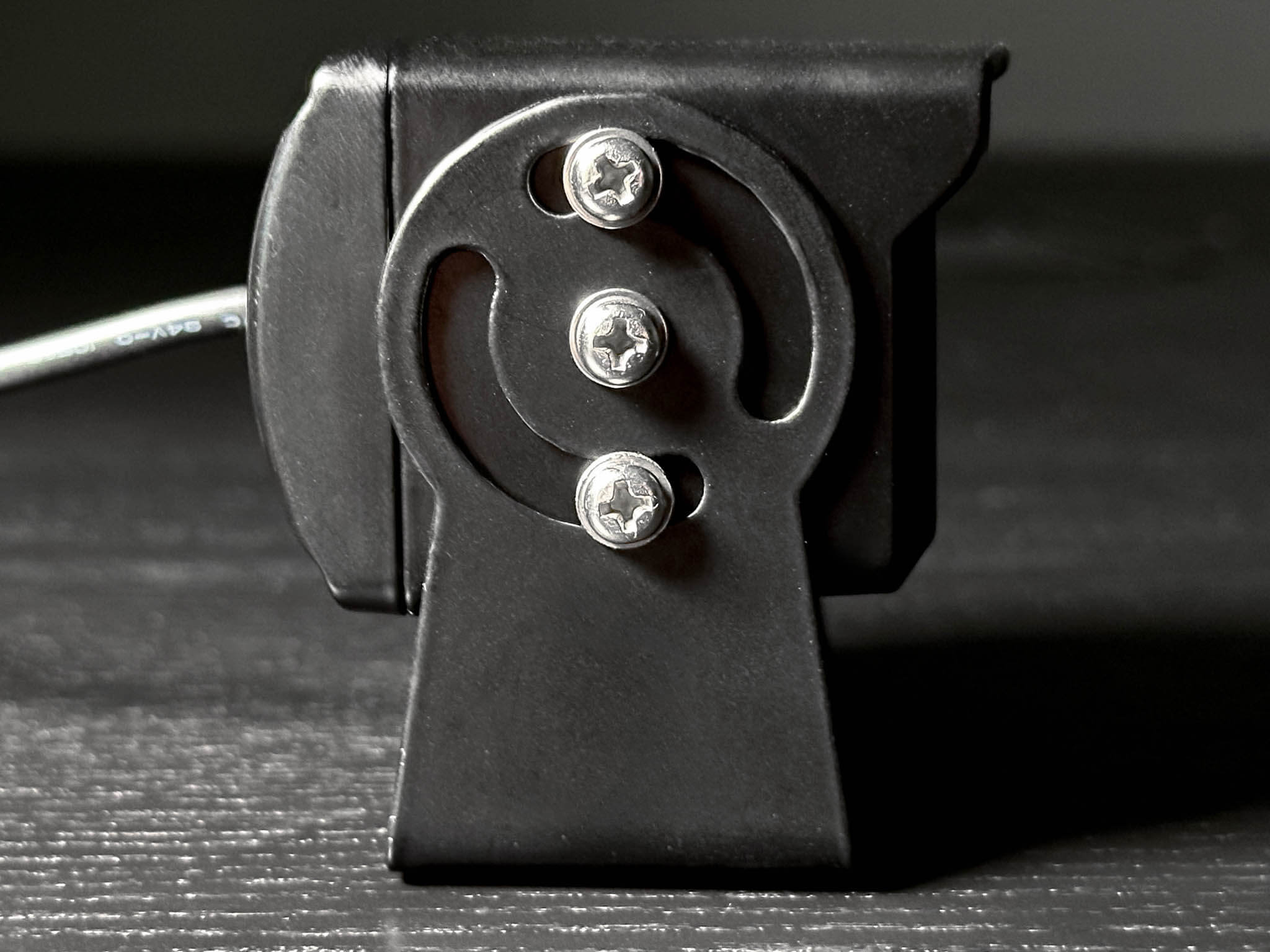

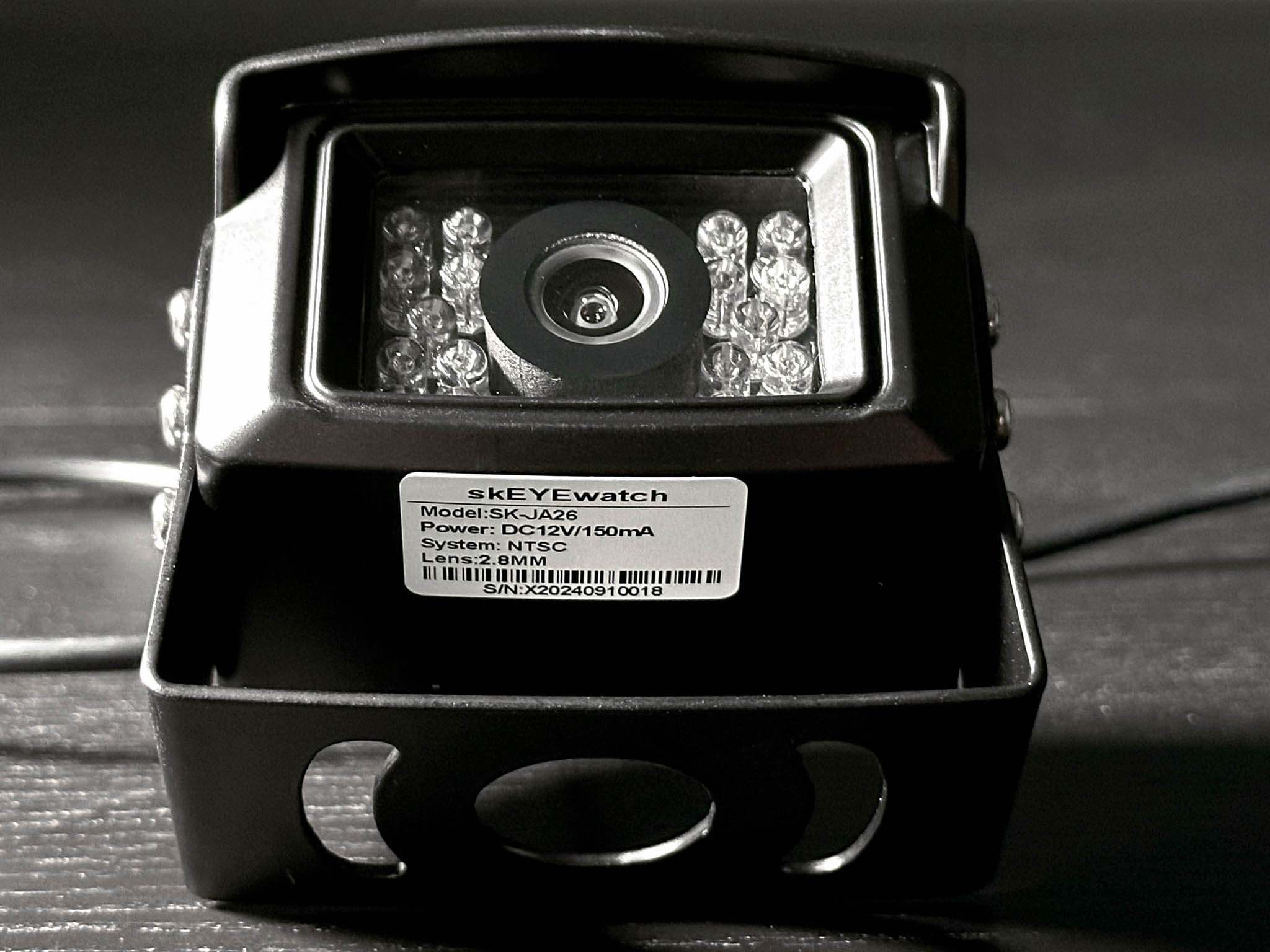

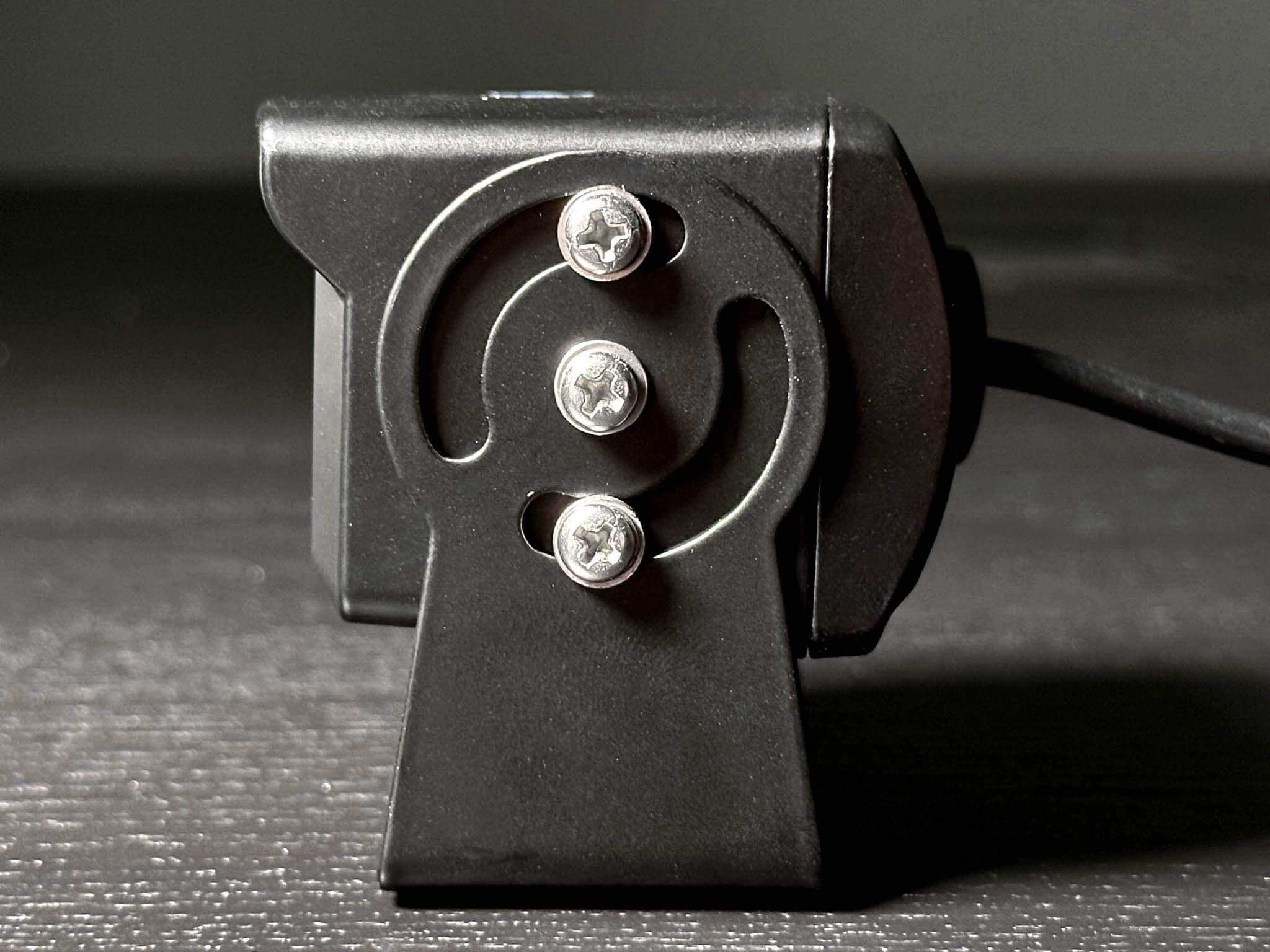

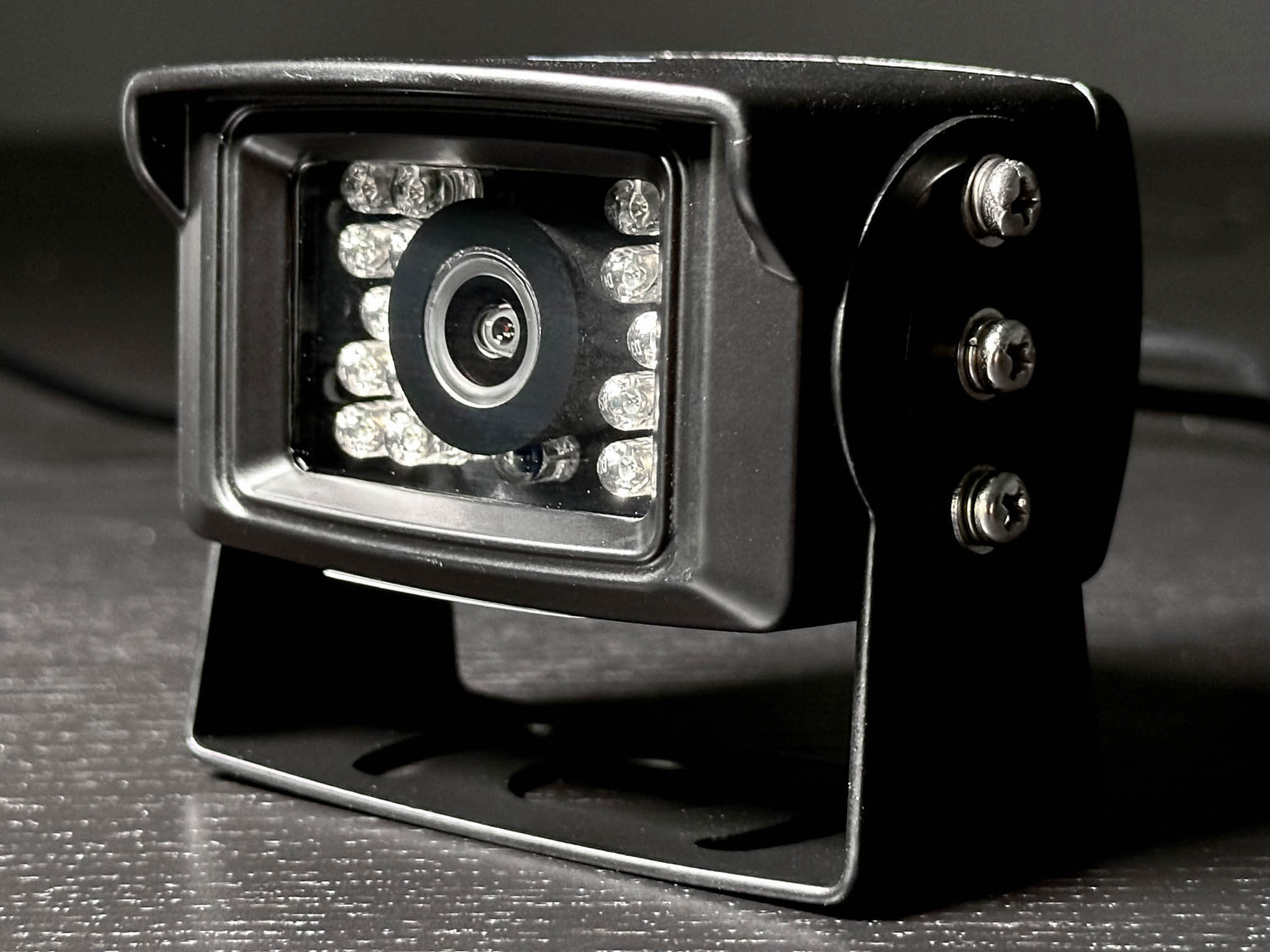

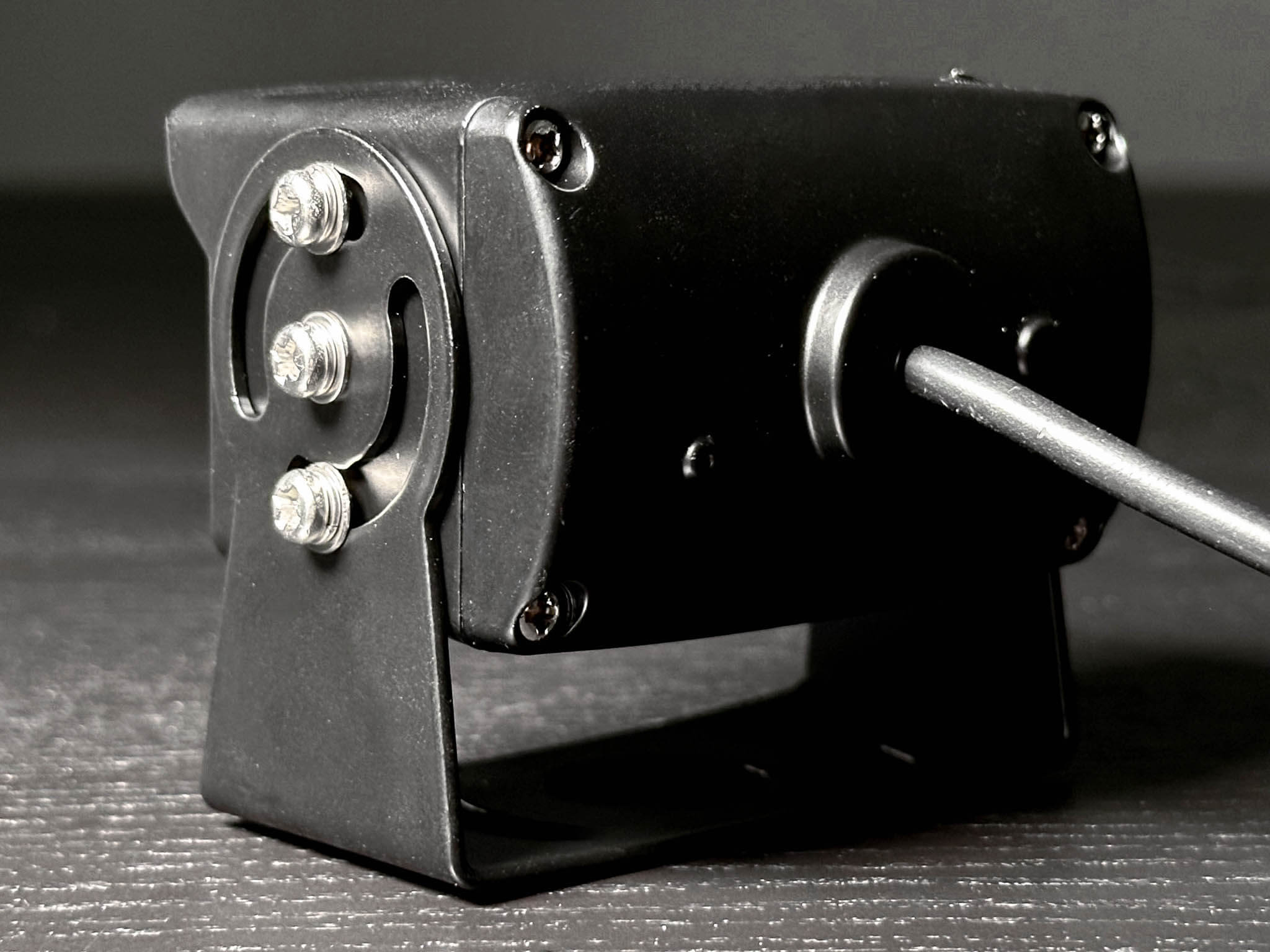

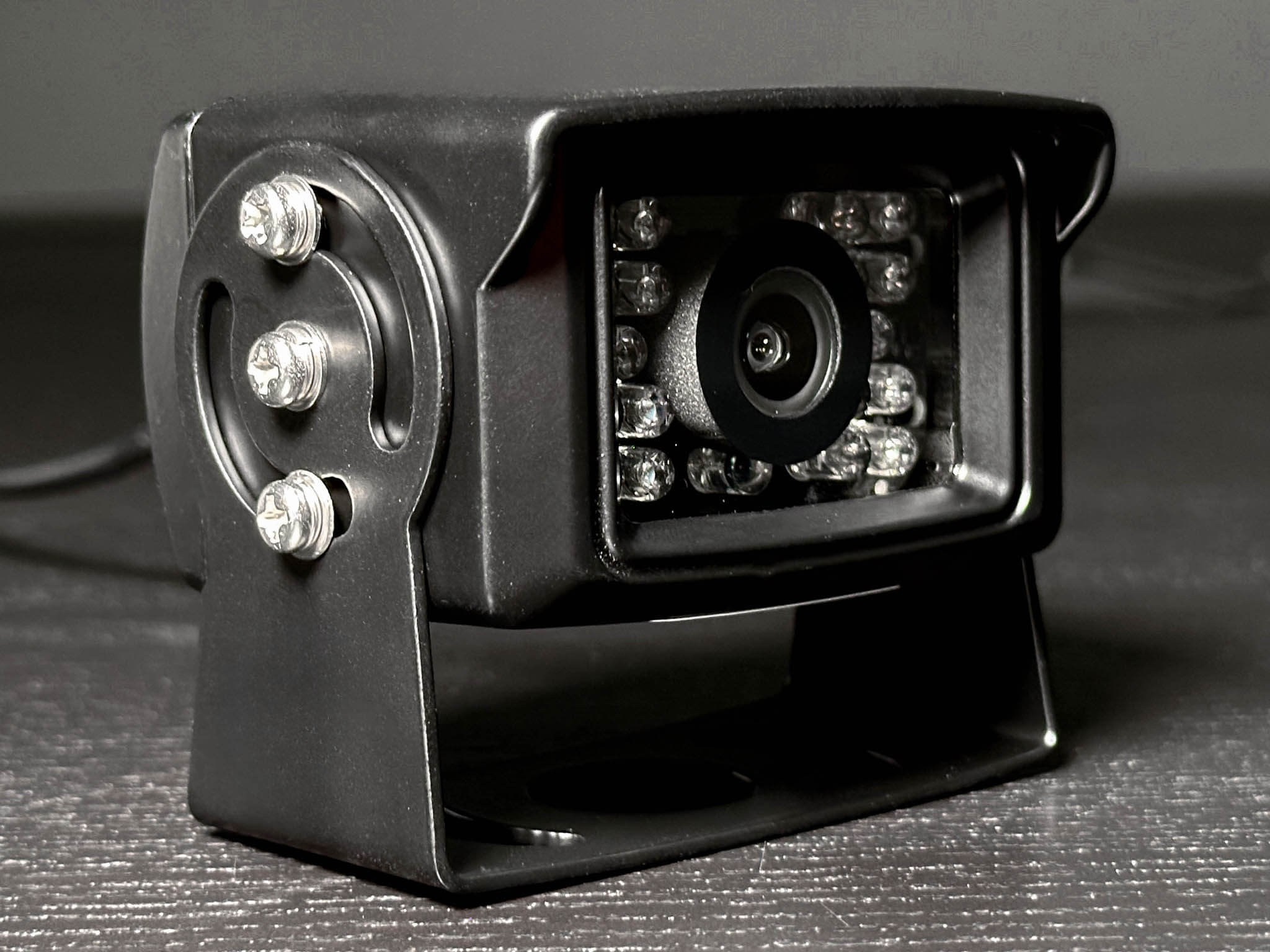

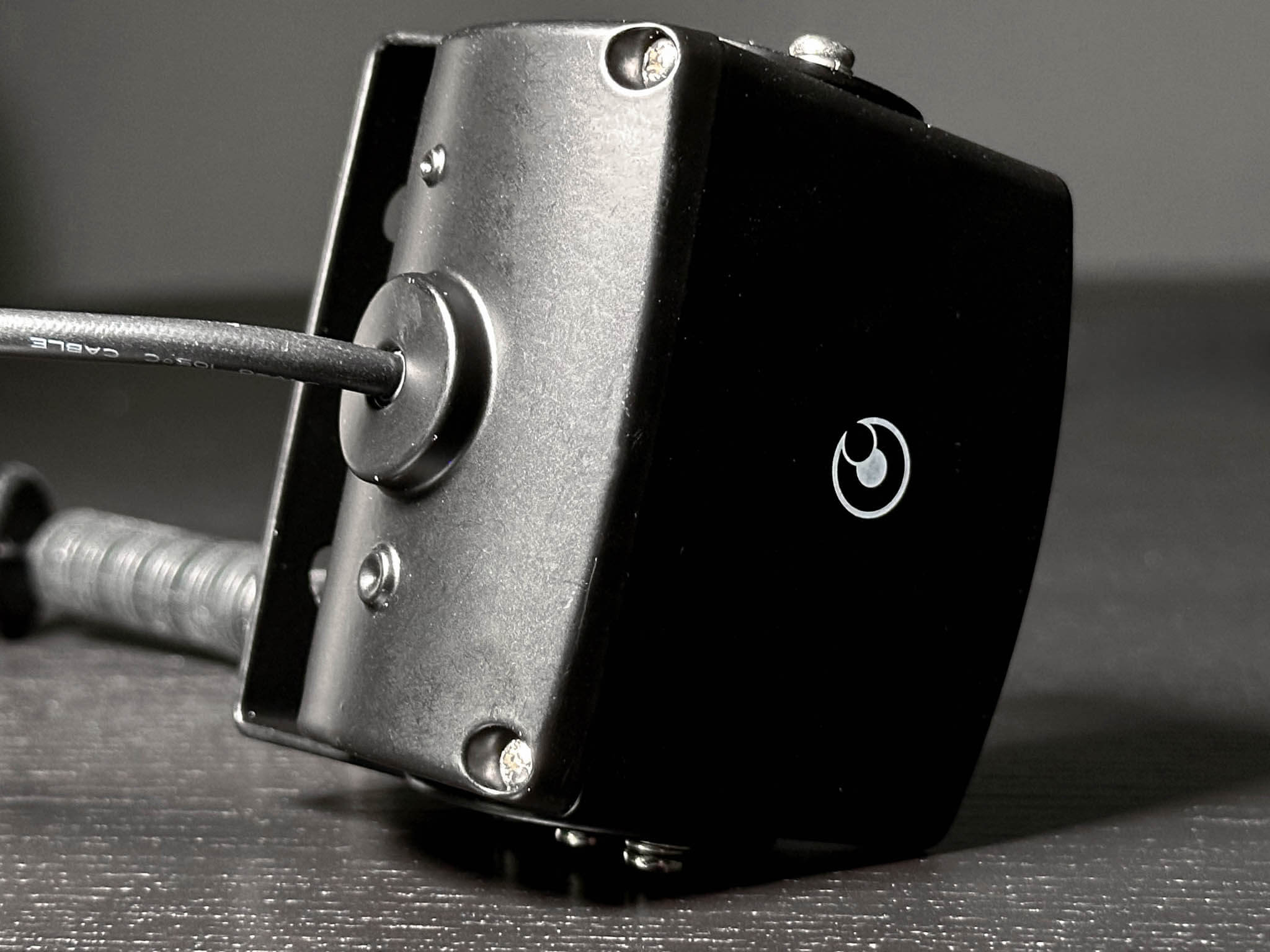

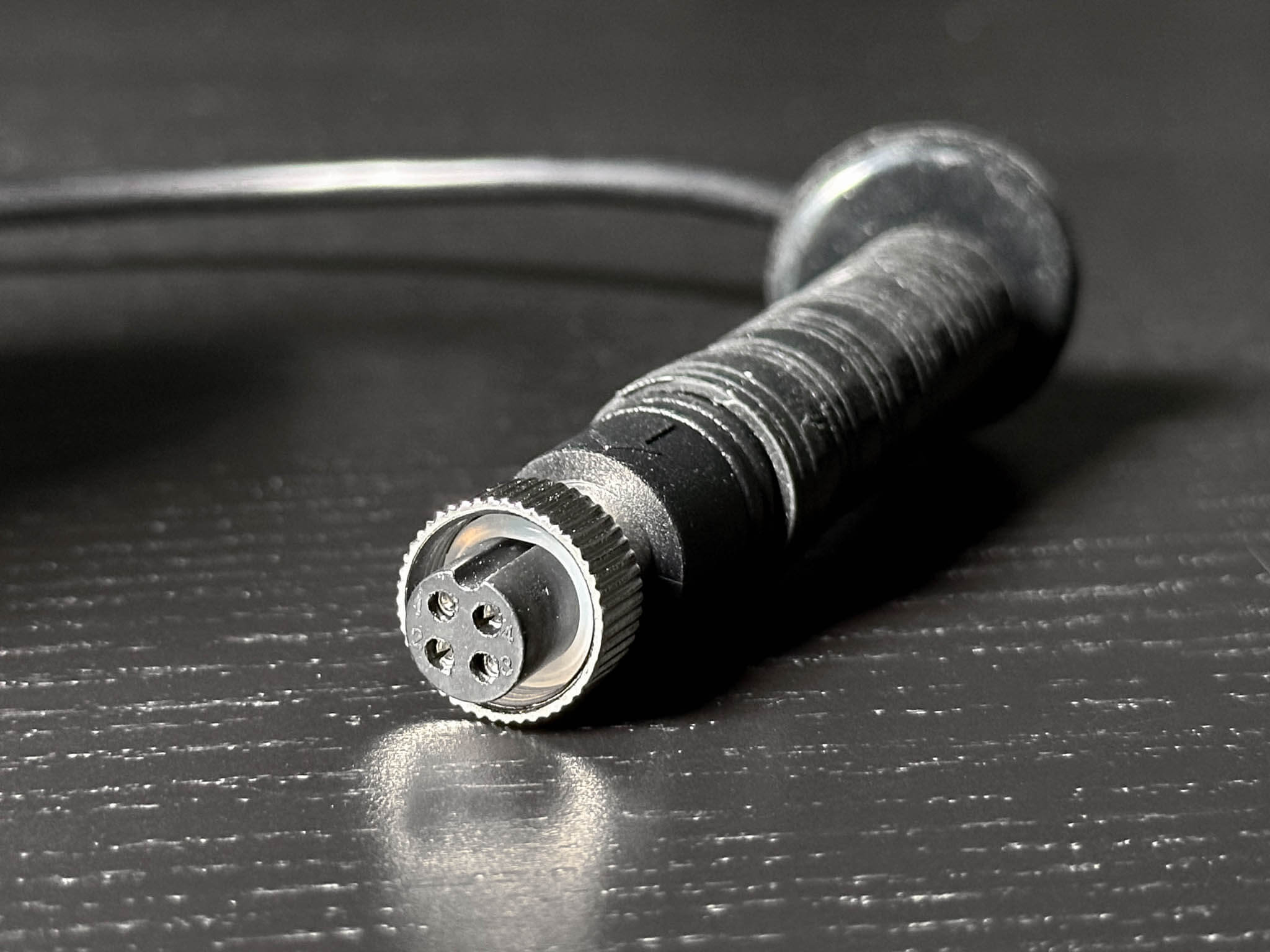

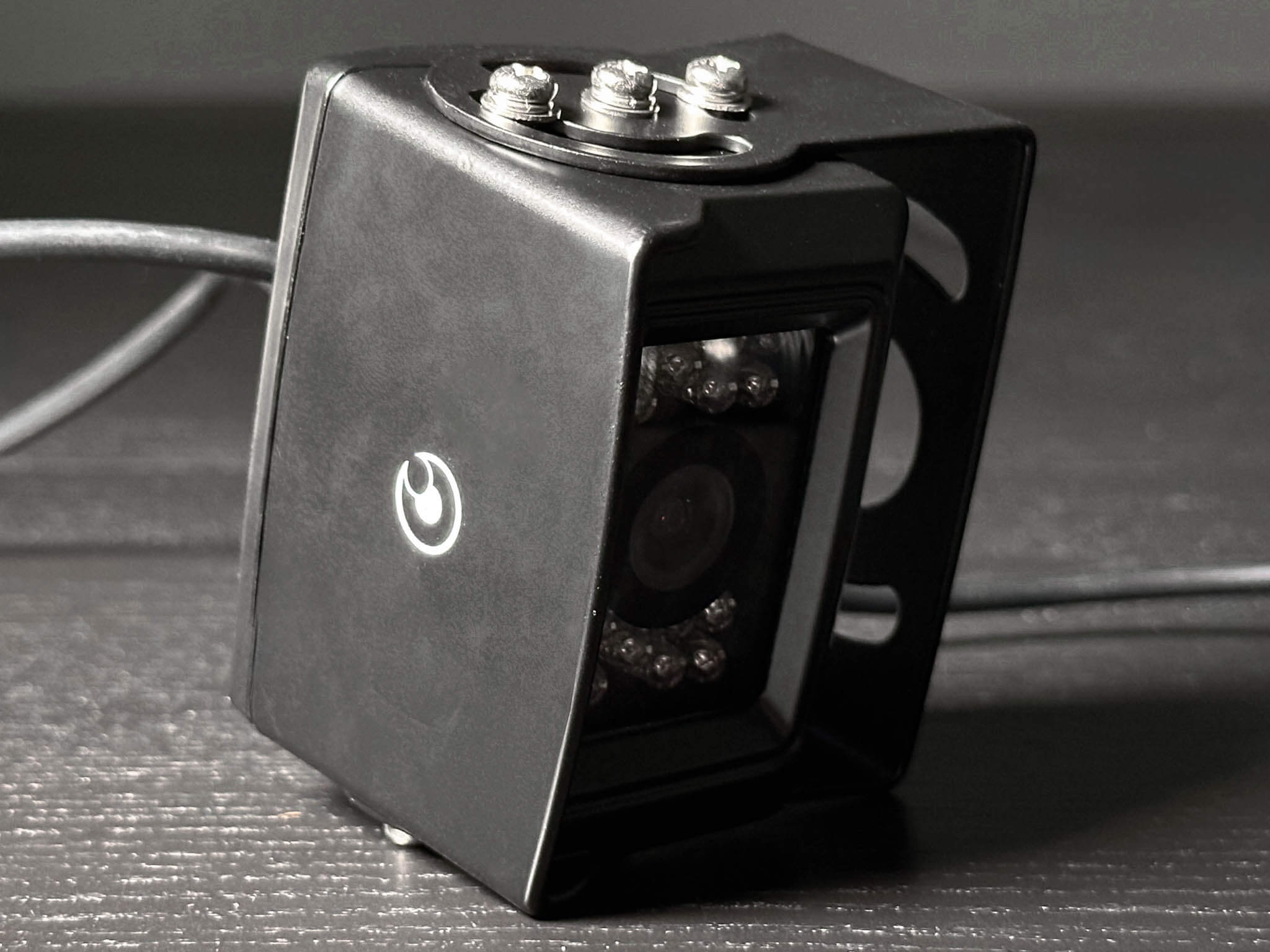

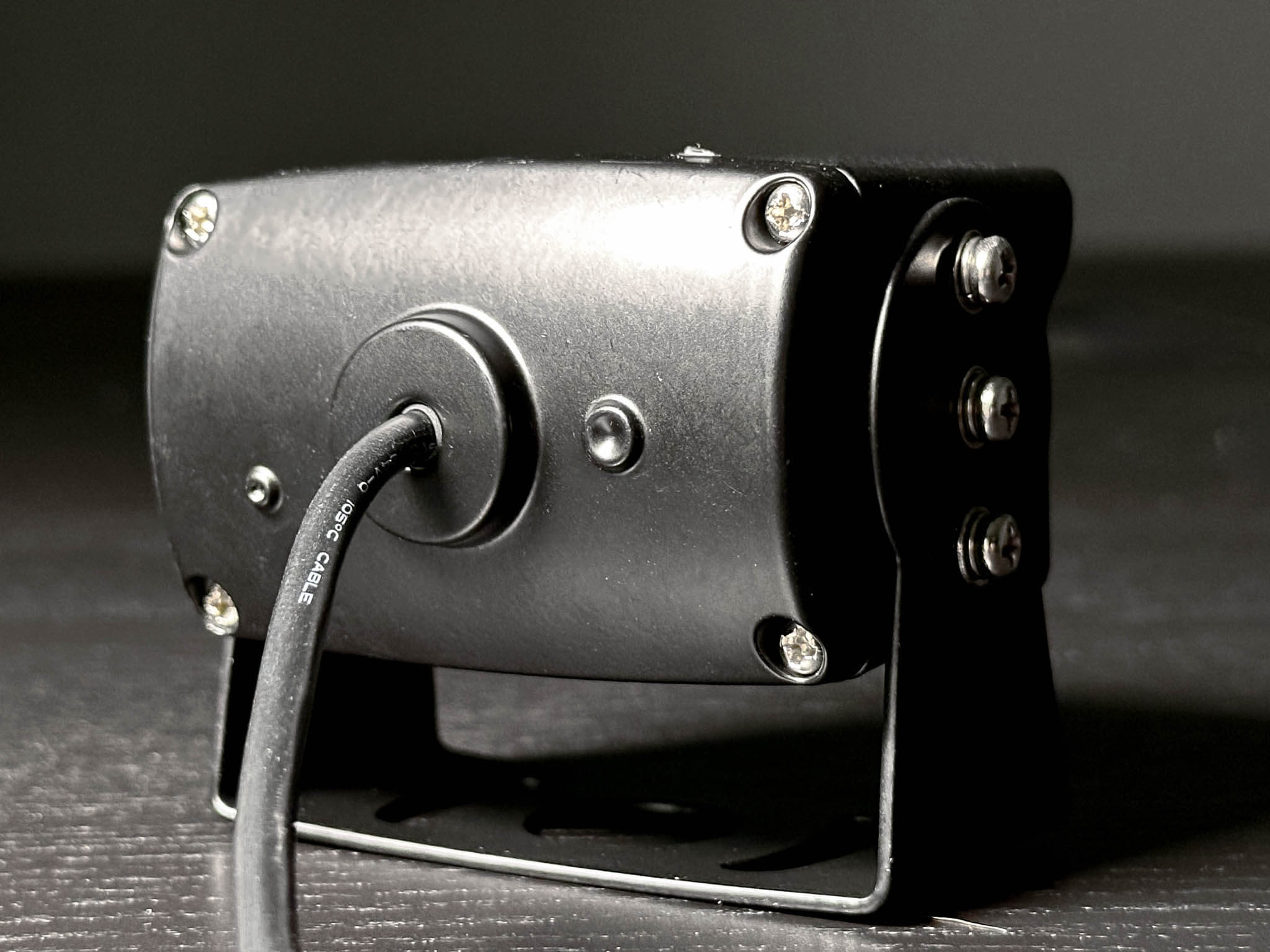

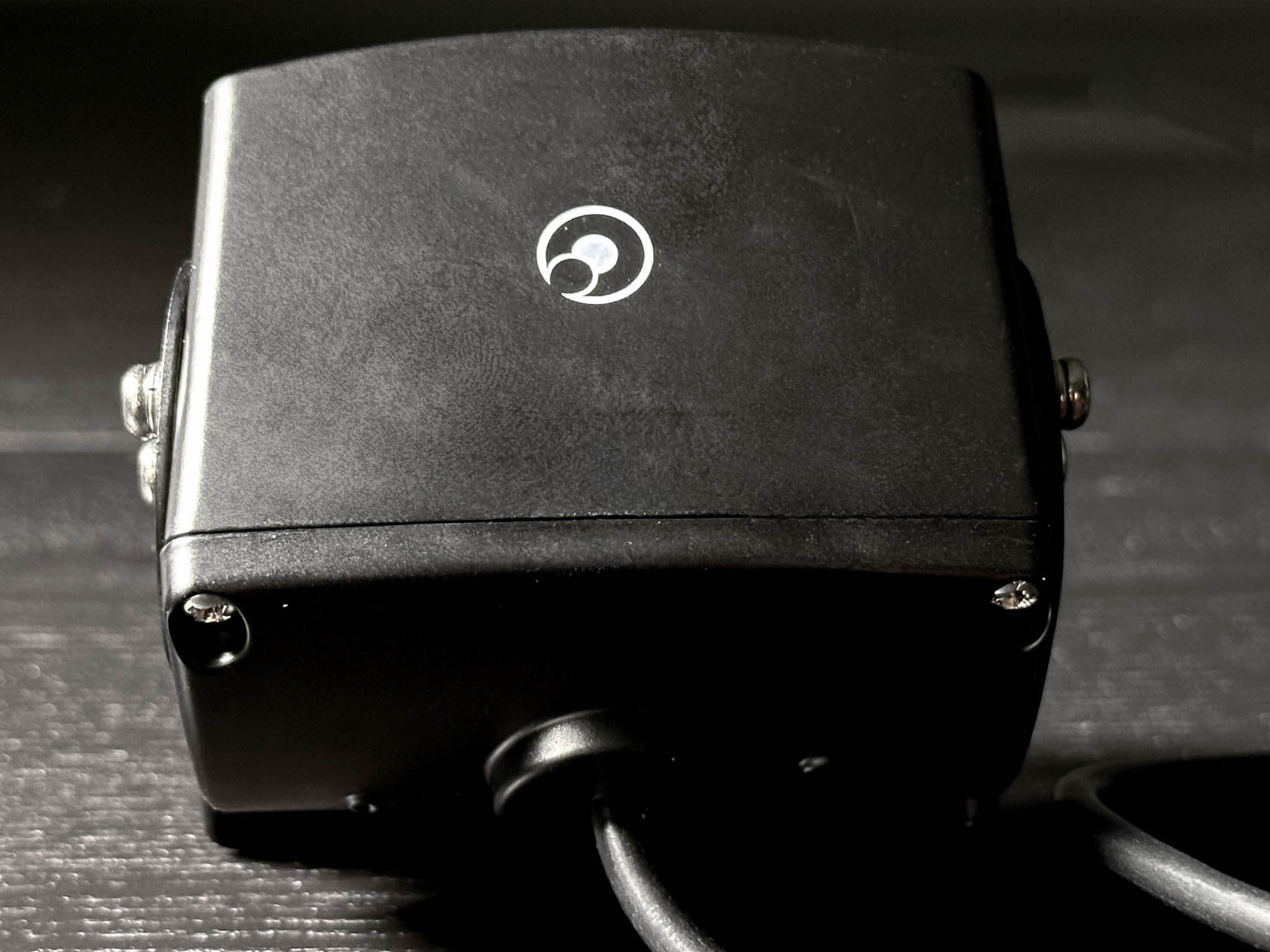

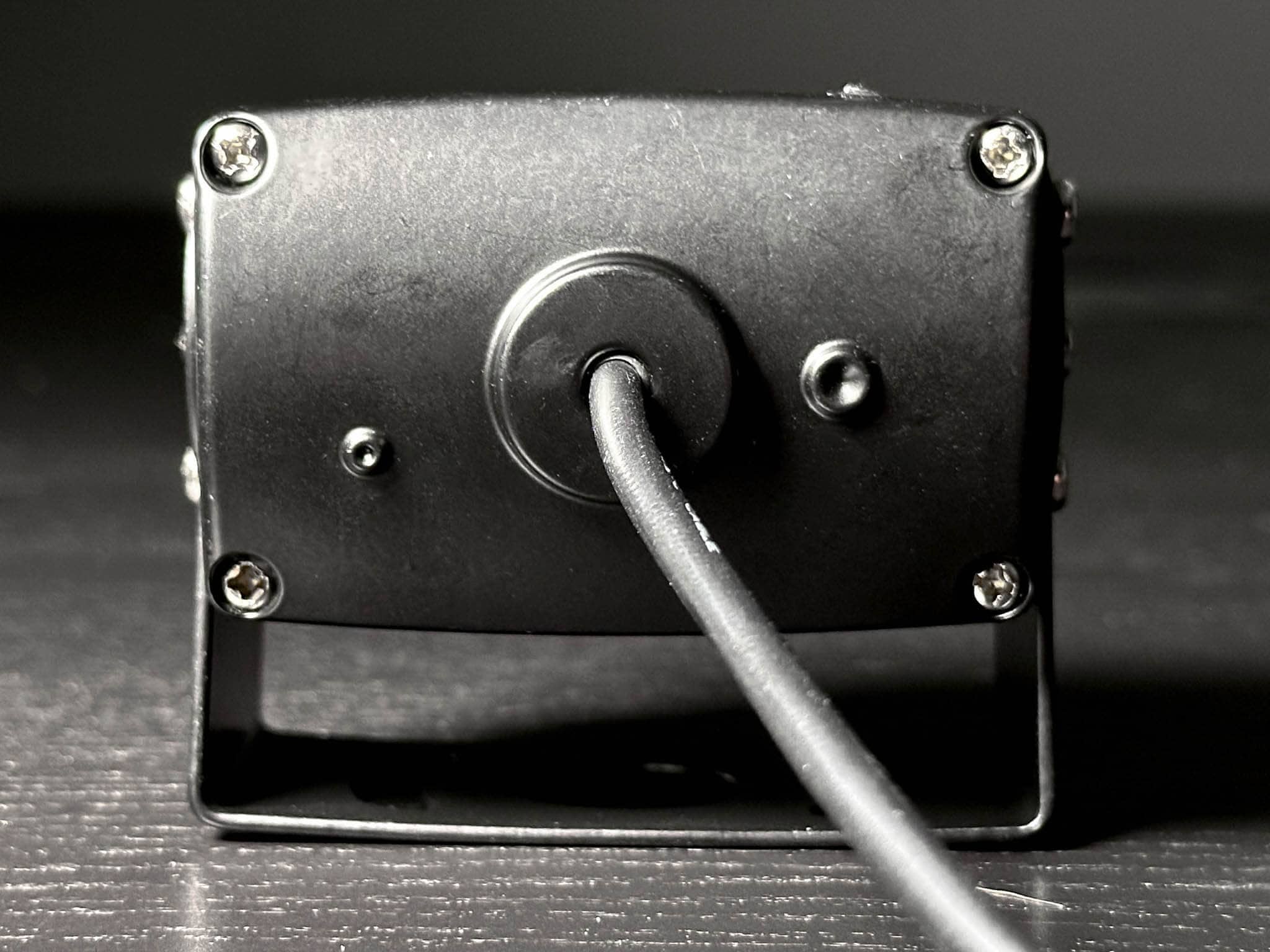

SK-JA26 Photo Gallery
SK-JA26 Specifications
- Sensor: 1/3” CMOS AHD
- Resolution: 1080P
- Lens: 2.8MM, 105° wide-angle
- IR LEDs: 18 pieces, IR distance: 10-15 meters
- Synchronization: Internal
- Auto Gain Control: Auto
- Electronic Shutter: Auto
- Noise Reduction: 3D
- BLC: Auto
- Power Supply: DC12V ±10%
- Waterproof Rating: IP69K
- Operating Temperature: -20°C to +75°C
- Weight: 240g
- Audio: Optional microphone
- Night Vision: 15 meters (upgrade from 10 meters)
Model #: SK-JA26
FAQs
FAQs About The JA26 Camera
What Types of Vehicles is the JA26 Camera Compatible With?
The JA26 camera is highly versatile and can be used on a wide range of vehicles, including:
- Commercial trucks (for surveillance and reversing)
- Construction vehicles and heavy equipment
- Waste management trucks (including monitoring compactor areas)
- Locomotives (used for both surveillance and coupling)
- Industrial transport vehicles
- Fleet vehicles in harsh environments
This camera is designed to handle tough conditions and can be adapted to various vehicle types across multiple industries.
What is an IP69K Rating?
The IP69K rating is the highest level of protection against dust and high-pressure, high-temperature water jets. This makes the SK-JA26 exceptionally durable, able to withstand extreme washdowns, dirt, and harsh conditions that would damage lesser cameras.
What is the purpose of an IP69K-rated vehicle camera?
An IP69K-rated vehicle camera, like the SK-JA26, is designed for environments where vehicles are exposed to extreme conditions, such as high-pressure washdowns, dust, and high heat. It ensures that even in the toughest environments, your camera continues to function, delivering reliable video footage for both driver safety and incident review.
What is the difference between the more common IP67 and IP69K?
While IP67-rated cameras offer protection against dust and water immersion, an IP69K-rated camera provides an even higher level of protection. IP69K cameras can withstand high-pressure, high-temperature water jets, making them ideal for industries where equipment undergoes frequent, intense cleaning or extreme weather conditions.
Is the JA26 (IP69K Rated) Camera Explosion Proof?
No, the JA26 IP69K-rated camera is not explosion-proof. While it offers top-tier protection against dust, water, and high temperatures, it wasn’t specifically designed for use in explosive environments. Instead, the JA26 was built for the highest level of IP protection, making it ideal for harsh conditions like high-pressure washdowns and extreme temperatures. Explosion-proof cameras are certified with separate ratings, such as ATEX or IECEx, to ensure safety in environments where flammable gases or substances may be present.
How does the SK-JA26 perform in low-light conditions?
The SK-JA26 is equipped with 18 infrared (IR) LEDs, giving it superior night vision up to 15 meters. This allows the camera to capture clear footage even in complete darkness, ensuring visibility in all lighting conditions.
